The steering angle sensor is in 99.99% the cause of malfunction of the electric power steering.
Do you have the below symptoms ?
1. Heavy steering (can be in one direction but will mostly be in both directions)
2. Intermittent loss of steering.
3. Total loss of power steering.
4. Steering starts to pull to one side (Self steer).
5. Steering vibrates when turning.
6. Power steering light illuminated on the dash
Important: Fiat Panda power steering warning light
Only if you have loss of power steering and also error code
C1002, C5002, C1006, C5006, C1001 and also vibrations you can repair the Powersteering Column by replacing the sensor !
Common Error Codes in the Powersteering ECU
C1002, C5002, C1006, C1001 & C1002,
If you have other error codes like only C1001 without vibrations you need to replace the ECU !
Repair Package Includes:

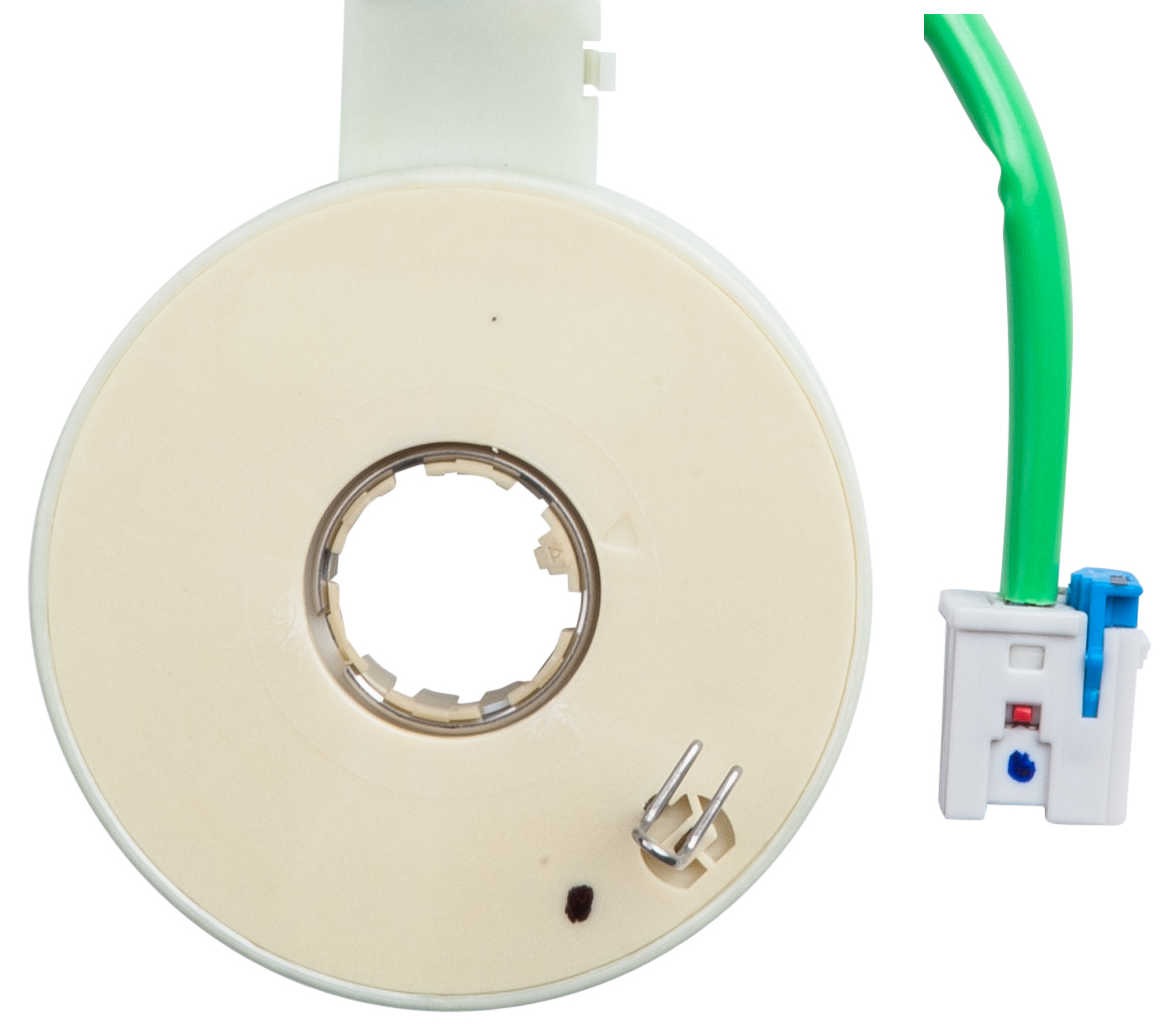

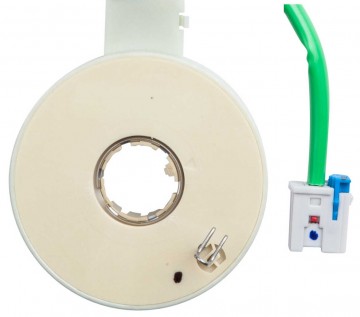

✓ 1 x Steering / Torque / Position angle Sensor
✓ 1 x Steering / Torque angle Sensor installation instructions.
✓ 1 x On Request Torque sensor calibration OBD device (on loan basis)
✓ 1 X On Request Torque sensor calibration software & manual.
(Win XP / 7 / 8 / 10)
Shipment per DHL. Delivery 1-2 days after receipt of order!
Step by step Sensor installation manual is included.
It will take max 1.0 hour to replace the Power steering torque / angle / position sensor !
You do not need to remove the steering column and the steering wheel and airbag etc!
Important :
Please mention Car details : VIN Chassis number , Year, model with or without ASR - ESP !!!!
Please check the Error Codes before ordering ! Only with C1002, C5002 , C1006 !
There is no need to change the steering column.
Leave the column in the car and Repair your column in 1-1.5 hour maximum!
There are many Advantages of repairing the Powersteering by replacing the steering angle sensor:
✓ 2 year warranty.
✓ Save time. You can start the repair of the powersteering column immediately so no delay.
✓ No waiting time on your Steering column 3 to 5 days.
✓ You keep your good working motor and Module!
✓ Save money by changing the sensor in stead of the column. Replace it in 1.0 hour.
✓ A step by step sensor installation manual is included.
✓ 6 days a week phone support 7:00- 20:00
Important:
A very detailed Sensor installation manual is included.
Please do not install the sensor without the installation manual !
If you do not follow our instructions it is possible that the steeringwheel will turn by itself and that torquesensor calibration is not possible !
Important:
After Sensor replacement you always need to perform Torque sensor calibration.
Torque Sensor Calibration is possible with Fiat Ex / Bosch KTS / Gutmann /
Torque Sensor Calibration is not possible with Delphi, Autocom, AVL.
With our OBD device you can calibrate the Torque sensor
You need to order the calibration device seperate ( Loan fee) and need to return it afterwards!
We are 100% confident you prefer to repair the Powersteering Column by
changing the sensor in 1 hour only.
We will be happy to assist you by phone if you need assistance.
Please contact us now!
Customer Phone Support line : +31243785906
Email: Info@steeringanglesensor.com
